Malha agradável da areia 150# 20-30 da fundição do NFS da areia esférica preta de Ceramsite
Detalhes do produto:
| Lugar de origem: | Henan, China |
| Marca: | Zhengtong |
| Certificação: | ISO 9001, ISO 14001 |
| Número do modelo: | 14Mesh-270Mesh |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | TA 25 |
|---|---|
| Preço: | Contact us |

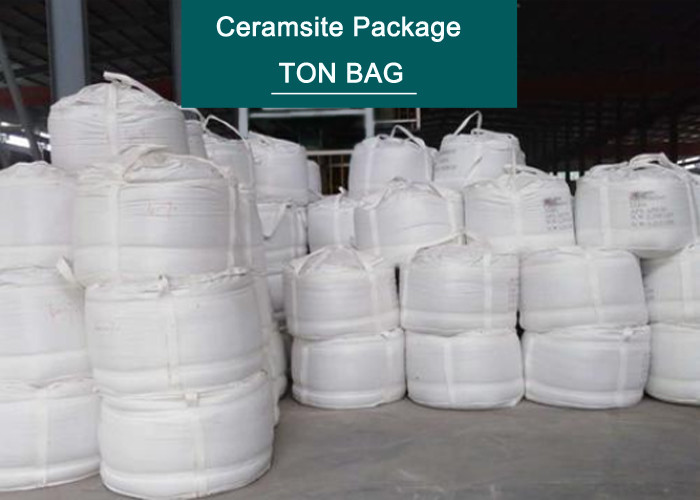

| Detalhes da embalagem: | 25kgs sacos dos sacos +Ton |
| Tempo de entrega: | 5-8 dias de trabalho |
| Termos de pagamento: | L/C, T/T |
| Habilidade da fonte: | 100000mt pelo ano |
|
Informação detalhada |
|||
| Materiall: | Ceramsite | Índice químico principal: | Máximo de Al2O3 75% Mínimo SiO2 18%. |
|---|---|---|---|
| Refractoriness: | ℃ 1800 Min. | Densidade de maioria: | 1.65-1.95g/cm3 |
| Densidade verdadeira: | 3.3g/cm3 | Valor de PH: | 7-8 |
| Taxa da expansão térmica: | 0,13% (1000℃, aquecendo 10 minutos) | Coeficiente do ângulo: | ≤ 1,1 (Extramely gosta spheric) |
| Realçar: | Black Spherical Ceramsite Sand,30 Mesh Ceramsite Sand,150# Ceramic Foundry Sand |
||
Descrição de produto

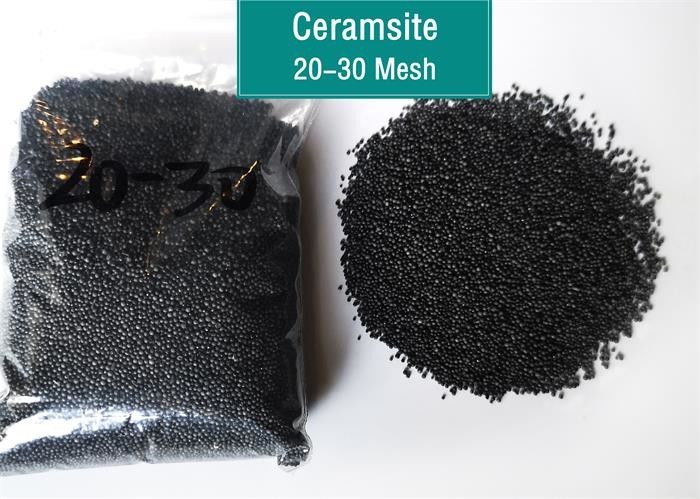

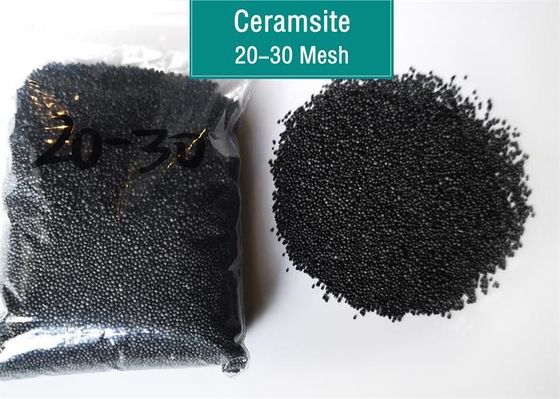

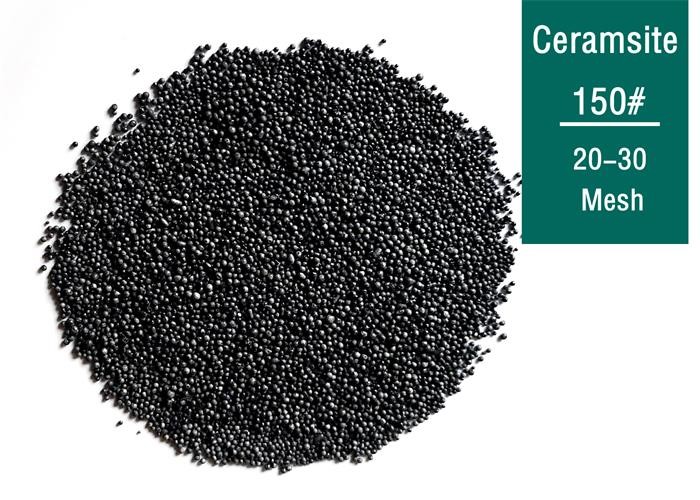

Black spherical Fused Ceramsite Sand Foundry Material 150# 20-30 Mesh
- Description
Ceramsite, also called as Fused ceramic sand, or NFS CERAMSITE-Nice Foundry Sand, is a kind of spherical shape ceramic particles featured by high refractoriness, low thermal expansion melted from the fused bauxite.
It provides a simple and efficient way in the foundry industry to improve the quality of the castings, reducing the production cost and avoiding environmental pollution, so it is much better than silica sand. And it is also good substitution to Chromite sand and Zircon sand because of its lower price. At the present, Ceramsite is acknowledged in the worldwide as the ideal sand for the foundries and has a wide feasibility of applications for the future development.
- Specification
Chemical Index
| Index | Al2O3 | SiO2 | Fe2O3 | TiO2 | K2O+Na2O | CaO+MgO | L.O.I |
| Content | 75% Min. | 18% Max. | 3% Max. | 3.5% Max. | 1% Max. | 1% Max. | 0.3% Max. |
Technical Index
| Index | Refractories | Bulk Density | True density | Angle coefficient |
| Content | 1800 ℃ | 1.65-1.95g/cm3 | 3.3g/cm3 | 1.1 Max. |
| Index | PH Value | Moisture | Mud Content | Thermal expansion rate |
| Content | 7-8 | 0.1% Max. | 0.1% Max. | 0.13% |
|
μm Mesh |
1700 | 850 | 600 | 425 | 300 | 212 | 150 | 106 | 75 | 53 | Pan | AFS | # |
| 10 | 20 | 30 | 40 | 50 | 70 | 100 | 140 | 200 | 270 | ||||
| 20/40 | ≤ 2 | 15-40 | 30-55 | 15-35 | ≤ 3 | 15-25 | 200# | ||||||
| 30/50 | ≤ 10 | 25-45 | 35-55 | 5-15 | ≤ 5 | ≤ 2 | 25-29 | 300# | |||||
| 40/70 | ≤ 10 | 25-45 | 20-40 | 15-25 | ≤ 7 | ≤ 5 | 35-39 | 400# | |||||
| 40/100 | ≤ 3 | 10-25 | 25-40 | 25-45 | 10-20 | ≤ 10 | ≤ 5 | 45-55 | 500# | ||||
| 50/100 | ≤ 10 | 10-30 | 30-50 | 15-35 | ≤ 15 | ≤ 5 | ≤ 2 | ≤ 1 | 55-65 | 600# | |||
| 50/140 | ≤ 8 | 10-25 | 20-40 | 20-40 | 5-20 | ≤7 | ≤ 2 | ≤ 1 | 60-70 | 650# | |||
| 70/140 | ≤ 10 | 10-25 | 25-45 | 15-35 | ≤15 | ≤ 5 | ≤ 2 | 75-85 | 750# | ||||
| 100/200 | ≤ 3 | 10-30 | 35-55 | 15-35 | ≤10 | ≤ 5 | 95-115 | 1000# | |||||
| 140/270 | ≤ 5 | 5-25 | 40-60 | 25-40 | ≤15 | 155-175 | 1500# |
Features:
1. Low thermal expansion, can reduce the casting flaw, and improve dimensional accuracy.
2. Neutral material, can work with acids and alkalis.
3. Cost-effective compared with the chromite sand and zircon sand, its price is only 30-50% of zircon sand and chromite sand.
4. Spherical shape and small surface, the resin can be reduced 30-50%
5. Good refractoriness with mulite in it, easy to collapsing.
Application:
Ceramsite sand is widely used in loast foam castings.
The advantage of ceramsite in lost foam casting is that it can be recycled and reused as its high refractoriness of 1800 degrees and of good stability,.
In the lost foam casting process, the filling sand actually does not use the adhesive, only need to vacuum in the sand box to ensure the strength of the ceramsite sand. Therefore, the cost of filling sand is quite low, and can be used repeatedly, greatly reduces the cost of using foundry sand.
Full applications of Ceramsite sand as below:
Lost Foam casting
Hot core box casting
Cold box process casting
Self-setting sand
Investment casting
Large steel casting
Precision casting
Drainage sand
Refractory Coating
3D printing
Contact us and know more ...
